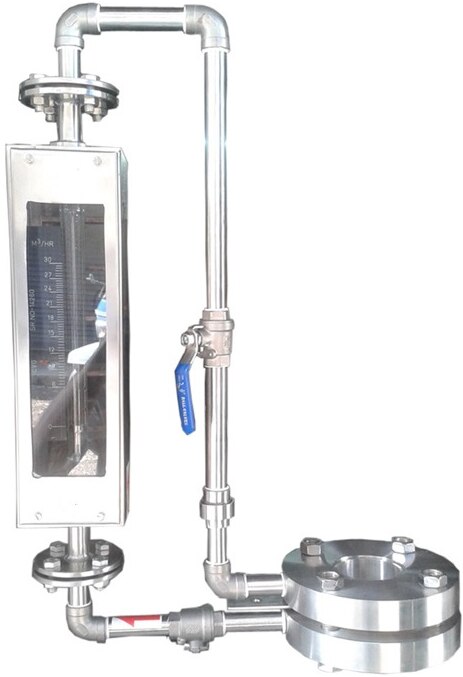

BYEPASS ROTAMETER PC-BRM-101 : Pride Controls & Systems Pvt. Ltd, located in Chennai, is a certified producer of high-performance industrial-grade flow and level measuring instruments. Our commitment to quality is evidenced by their certification in accordance with ISO 9001:2015. Among their line of products, Bypass rotameters are extensively utilized in industrial settings where continuous and accurate measurement of fluid flow rates is crucial. They are commonly found in chemical processing plants, water treatment facilities, and oil refineries. Their robust design and reliable performance make them ideal for monitoring fluid flows in pipelines and process systems.

Pride Controls & Systems is pleased to offer the orifice plate flow meter is a crucial differential pressure flow meter used extensively for measuring clean liquid, gas, and steam mass flow. It is universally applicable for all pipe sizes and offers a highly cost-effective solution for assessing fluid flows in larger pipes (exceeding 6" diameter). Predominantly composed of stainless steel, the orifice plate is the most prevalent material employed. When it comes to low flow rate measurement, a d/p cell featuring an integral orifice is unequivocally the optimal choice. It is imperative to note that orifice plate flow meters are exclusively recommended for clean, single-phase fluids. Even minimal build-up can result in substantial measurement inaccuracies or unit blockage. During installation, critical factors, including tap location and condition, pipe state, adequacy of straight pipe runs, gasket interference, pipe, and orifice bore misalignment, and lead line design must be meticulously observed. Moreover, potential adverse circumstances such as the blunting of the sharp edge, corrosion or erosion-induced nicks, plate warpage stemming from water hammer and dirt, and the deposition of grease or secondary phases on the orifice surface necessitate unwavering attention.

Pride controls & system are the manufacture, Supplier and Exporters of Stainless Steel Multijet Tri-clover end water meter. we have SS 304, SS 316 material of construction. Tri-clamp fitting flow meter is mainly with stainless steel wet parts material also tri-clamp process connection for sanitary and hygienic purpose, in- line type flow sensor is widely used in food industry such as food and beverage industries etc. It will be easy to fix and remove in between the pipe line, which facilitate disassembly and cleaning to measure the flow rate.

Pride Controls & Systems Pvt Ltd is an ISO 9001 : 2015 Certified Manufacturing company of High Performance Industrial grade flow measuring instruments . The Pride PCMT-H Metal tube variable area flowmeter is to measure the flow rate of liquid, steam, gas and oil with greater flexibility & less pressure drop in various industrial applications. PRINCIPLE OF OPERATION OF VARIABLE AREA FLOW METER This Flowmeter works based on variable area principle. When the fluid flow increases, the float in a metal tube raises and the float’s height is directly proportional to the flow rate of the fluid..The higher the flow rate the higher the float is raised. The float moves in a tapered tube up or down in proportion to the flow rate of the fluid and the annular area between the float and the tube. Advantages of Metal tube Variable Area Flowmeter • Short mounting length and compact construction • Easy method of installation • No straight pipe run required before or after the flowmeter • Metallic tube with a robust construction • Indication by means of magnetic coupling • High performance even at extreme working conditions • High resistance to corrosion • Low pressure drop • Vertical or horizontal connections Features of Metal tube Variable Area Flowmeter • Installation: Vertical as standard and Horizontal Mounting can be done with optional feature • Display: LCD display for flow Tantalizer on request • Flow measurement: Suitable for Liquid, Steam, Gas, Air & Oil • Flow Units: LPH, M3/hr, Kg/hr, Nm3/hr • Line Sizes: 1/4th to 6” • Transmitter Output: 4 – 20 mA Analog output can be given as optional feature • Alarm Output: Relay Output • Pressure Rating: 40 Bar as standard and up to 200 Bar can be given on request • Temperature: 50 Deg C to +200 Deg C as standard and up to 400 Deg C on request • End Connections: Flanged, Threaded, Tri Clamp and others as per request • Body Material: SS304, SS316, SS316L, and other materials as per request • Wetted Parts: PTFE, SS316L, SS316, SS304, and other materials as per request.

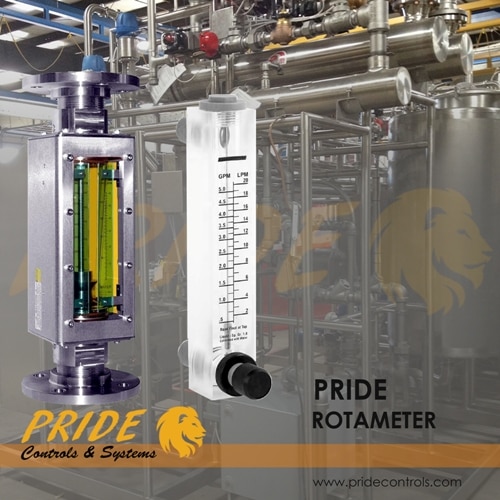

This variable area meter is also called as glass tube Rotameter. Pride Controls are the manufacturer and Supplier of Glass Tube Rotameter. The same design can also be made up of Acrylic to withstand high pressure & temperature. In Glass Tube Rotameter, the height of the float is directly proportional to the flow rate. When the media flows from bottom to top through the rotameter tube which is installed vertically, it lifts the float and shows the flowrate. This Glass Tube Rotameter is used to measure various types of liquids and gases. The various types of flange & Body materials, linings and float materials satisfy the requirements such as Water, Solvents, Acids, Nitrogen, Oxygen, Chlorine, Ammonia etc etc. Specification Media :Water, Solvents, Acids, Air, Gases Tube Type :Solid Acrylic, Borosilicate Toughened Line Size :DN15 to DN100 Body MOC :MS,SS304, SS316, PTFE Lined, Acrylic Float MOC : SS304, SS316, SS316L, PTFE End Connection : Screwed, Flanged, TC Seal : Neoprine, PTFE, Nitrile, Viton Installation : Vertical

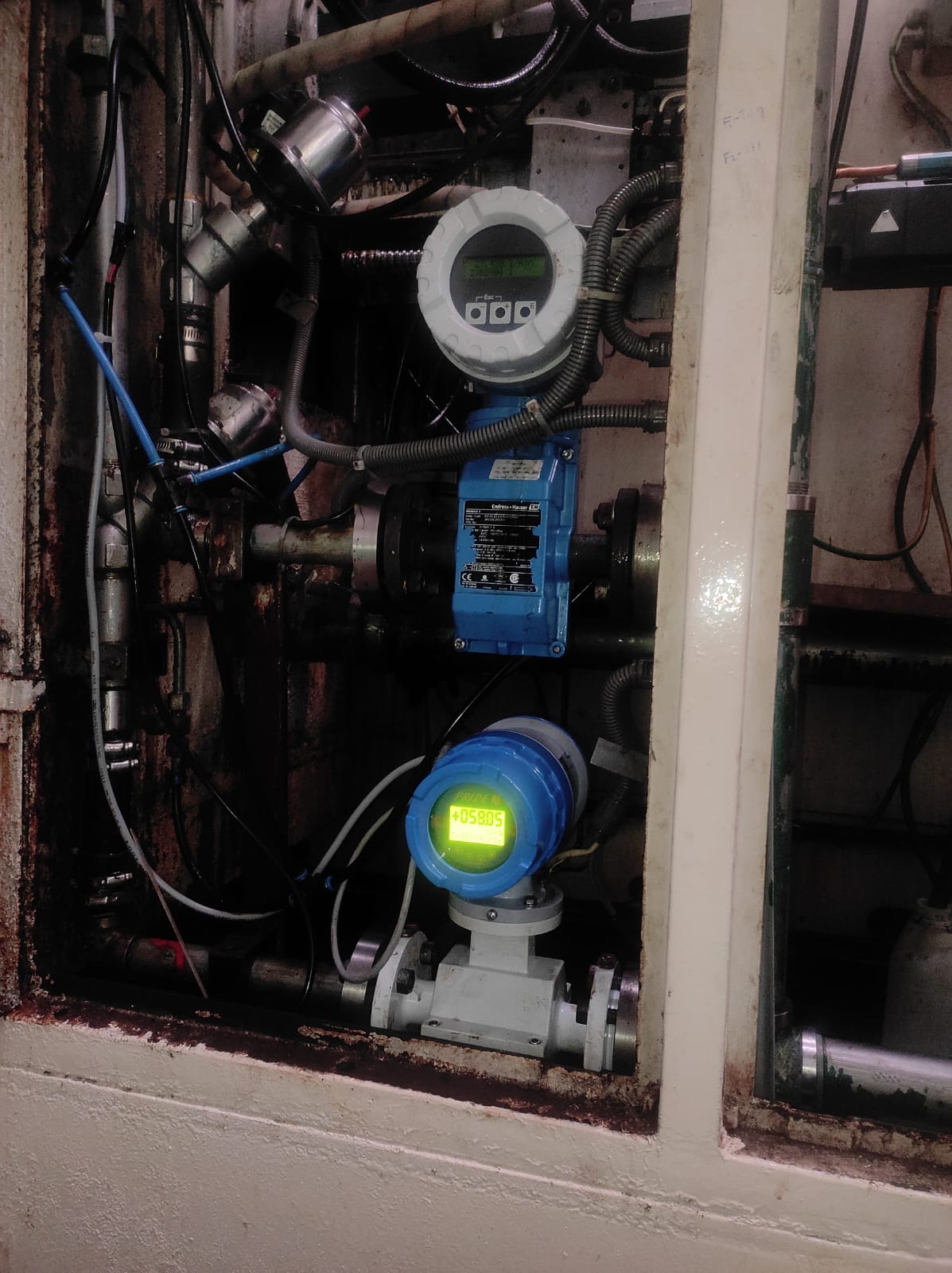

Pride Controls & Systems Pvt Ltd is an ISO 9001 : 2015 Certified manufacturing company of Digital Water flowmeters with Telemetry system as per the norms of POLLUTION CONTROL BOARD to monitor, measure, track and data storage of industries wastewater treatment system. We at pride controls provides complete solution to monitor the discharge of waste water by providing Real-time discharge monitoring.Pollution Control Boards in India (like CPCB & various SPCBs) have made Electromagnetic flowmeter installation mandatory at final discharge outlets of STPs, ETPs, and CETPs.Data logging should comply with Environmental Surveillance systems (Online Continuous Effluent Monitoring System - OCEMS) standards. Compatible with remote data transmission via GPRS/4G/IoT protocols.Can be integrated with SCADA systems or direct online transmission to State/Central Pollution Control Boards (SPCB/CPCB) aligned with CPCB guidelines and provide Portal access for PCB and industry.

EMF – H MODEL Pride Controls & Systems Pvt Ltd is a certified manufacturing entity that specializes in the production of high-performance, industrial-grade flow measuring instruments. The Pri-Mag 6000 H Series, a popular product of the company, finds extensive use in industries such as chemicals, pharmaceuticals, pulp, acid, sludge water, dairy, food, and more. These flow meters are characterized by their superior reliability and accuracy, functioning on the principle of Faraday's Law of Electromagnetic Induction. Precision instruments designed for electrically conductive liquids, slurry fluids, acids, and chemicals, Pride Flow meters have a minimum conductivity of 50 Micro Siemens and exhibit relative immunity to the effects they encounter. The line sizes of Pride Electromagnetic Flow meters range from DN06 to DN3000.

The Scotch yoke also known as slotted link mechanism is a reciprocating motion mechanism, converting the linear motion of a slider into rotational motion, or vice versa. The piston or other reciprocating part is directly coupled to a sliding yoke with a slot that engages a pin on the rotating part. The location of the piston versus time is simple harmonic motion, i.e., a sine wave having constant amplitude and constant frequency, given a constant rotational speed. The Scotch yoke serves as an essential device in mechanical engineering, designed to convert linear motion into rotational motion or vice versa. This mechanism comprises a piston or a similar reciprocating component that is directly connected to a sliding yoke featuring a slotted opening. Within this slot, a pin from the rotating element is engaged, providing a fixed point of rotation. As the rotating element turns, it allows the yoke to slide along the slot, which translates the linear movement of the piston into circular motion. This conversion process is crucial in various applications, including engines and mechanical linkages, where precise motion control is required. Moreover, when the mechanism operates at a steady rotational speed, the position of the piston relative to time exhibits simple harmonic motion. This motion can be represented graphically as a sine wave, characterized by a constant amplitude and frequency. This predictable motion ensures reliability in systems where consistent performance is paramount. Understanding the dynamics of the Scotch yoke mechanism is fundamental for engineers designing systems that rely on efficient energy transfer and motion conversion.

PRIDE HET 1000 TURBINE FLOWMETER

The Pride HET-1000 Liquid Turbine Flowmeter is designed to Provide high Performance and good accuracy with Various Sizes and end Connections. For the measurement of flow rate and Volume of Conductive and Non-Conductive Liquids, free flowing liquids and medium Viscous Liquids, the turbine Flowmeters is one of the best Choices. Due to the Optimized Design it has minimized influence of flow profile and low Pressure loss with Long meter life and reliability.
