Pride Controls and Systems are the Manufacture, Supplier and Exporters of the Turbine Flowmeter Operates and Measures the media through a Rotor Which runs freely Within a tube. Pride HET-1000 Liquid Turbine flow meter with Flange End are used to measure dry gases and liquids such as hydrocarbons, chemicals, vapors, fuels and other types of liquids with lower viscosity for applications requiring highly accurate and precise measurements of flow rate and Free-Flowing and Medium Viscous Liquids. There are Many features available from:- Long Life and Reliability, High Accuracy & Repeatability, Power Supply Can be 24 V DC/ Battery Operated. Outputs of 4 – 20 mA, 0 - 20 mA, 2&3 -Wire, Pulse, RS 485.

Condensate Hot water meters are used in steam boiler recollection water application. The Pride CI multijet and woltmann hot water meters are manufactured in high quality raw material suitable to work in hot water applications and to give good accuracy readings. Pride Cast Iron multijet and woltmann hot water meters are very cost effective in price, quality and durable in work span. As this is analog mechanical type, it works without power supply and measures the consumption of water continuously. Specifications : Meter Sizes : 15mm to 600mm Standard : ISO 4064 Dial Type : Dry Dial Register : Vacuum and Anti-Frost super clarity Maintenance : Removable mechanism Design : Multijet and Woltmann Temperature : 90 Deg C Material of Constructions : Cast Iron Output : Pulse optional

This variable area meter is also called as glass tube Rotameter. Pride Controls are the manufacturer and Supplier of Glass Tube Rotameter. The same design can also be made up of Acrylic to withstand high pressure & temperature. In Glass Tube Rotameter, the height of the float is directly proportional to the flow rate. When the media flows from bottom to top through the rotameter tube which is installed vertically, it lifts the float and shows the flowrate. This Glass Tube Rotameter is used to measure various types of liquids and gases. The various types of flange & Body materials, linings and float materials satisfy the requirements such as Water, Solvents, Acids, Nitrogen, Oxygen, Chlorine, Ammonia etc etc. Specification Media :Water, Solvents, Acids, Air, Gases Tube Type :Solid Acrylic, Borosilicate Toughened Line Size :DN15 to DN100 Body MOC :MS,SS304, SS316, PTFE Lined, Acrylic Float MOC : SS304, SS316, SS316L, PTFE End Connection : Screwed, Flanged, TC Seal : Neoprine, PTFE, Nitrile, Viton Installation : Vertical

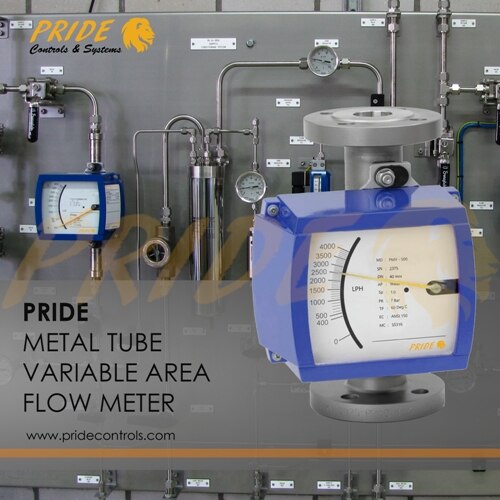

Pride controls & Systems have been engaged in offering Metal Tube Rotameter to our esteemed customers. Pride controls are the Manufacturer, Exporters and Supplier of Variable Area Flowmeter. These Metal Tube Rota Meters are designed to measure the flow rate of liquids and gases in the most efficient manner. The differential pressure across the annulus area is constant and the rate of flow is measured as a function of the position of annulus area created by float position. The position of the float is sensed by a magnet and indicated on the dial in terms of flow rate. These products are highly demanded by its accurate measurement. Under the strict supervision of our experienced professionals, this measurement is manufactured using superior quality components. Features: Inline Flange mounted flow meters, SS body Vertical or different mounting arrangement Pointer display, LCD display, analog output versions Wide temperature range Suitable for water, non conductive liquids, oils, chemicals, acids, fluid, air

PRIDE CONTROLS and Systems PVt LTd, we are the Turbine flowmeter manufacturer in chennai and supply to PAN india and exporters to other countries. We are an ISO 9001 : 2015 certified flowmeter manufaturer and we supply our flowmeters to various industrial applications. Its operates and measures the media through a Rotar which runs freely within a tube, Which cause the rotation. Applications used DM water Ro Water Sovents Spririts Alcohol Acids

Pride Controls &Systems Pvt.Ltd Is An ISO 9001:2015 Certified Manufacturing Company Located In Chennai, Specializing In The Production, Supply, And Export Of High-Performance Industrial Grade Flow And Level Measuring Instruments. Our Company Boasts A Top-Quality Solvent Turbine Flow meter, Which Features A Flanged Type And Is Capable Of Delivering Outstanding Performance Even In Non-Conductive Liquids Such As Kerosene, Petroleum, And Vegetable Oil. This Flow meter Operates By Measuring The Media Through A Rotor That Runs Freely With A Tube, Causing The Rotation Speed To Be Proportional To The Velocity Of The Fluid Media. We Take Pride In Utilizing Only The Finest Quality Materials And Updated Technology In The Processing Of Our Turbine Flow Meters, Which Enables Us To Confidently Guarantee The Superior Performance Of Our Products.

IBR VORTEX OMEGA FLOWMETER The Vortex flow meter, manufactured by Pride Controls & Systems Pvt Ltd, has received approval from the Indian Boiler Regulation (IBR) for measuring steam in boiler applications. These flow meters provide valuable data for assessing the performance of the system, calculating boiler efficiency, and monitoring steam consumption. In some instances, they also furnish a measurement signal for the boiler control system. The Pride Vortex Flow meter operates on the Karman vortex street principle and is suitable for measuring liquids, gases, and steam across a diverse range of industries, including petroleum, chemical, metallurgy, and heat supply. It is available for steam applications with pressure and temperature compensation, providing a reliable and accurate measurement for evaluating system performance.

IBR VORTEX OMEGA FLOWMETER The Vortex flow meter, manufactured by Pride Controls & Systems Pvt Ltd, has received approval from the Indian Boiler Regulation (IBR) for measuring steam in boiler applications. These flow meters provide valuable data for assessing the performance of the system, calculating boiler efficiency, and monitoring steam consumption. In some instances, they also furnish a measurement signal for the boiler control system. The Pride Vortex Flow meter operates on the Karman vortex street principle and is suitable for measuring liquids, gases, and steam across a diverse range of industries, including petroleum, chemical, metallurgy, and heat supply. It is available for steam applications with pressure and temperature compensation, providing a reliable and accurate measurement for evaluating system performance.

SOLVENT TURBINE FLOW METER Pride Controls &Systems Pvt.Ltd is An ISO 9001:2015 Certified Manufacturing Company Located In Chennai, Specializing In The Production, Supply, And Export Of High-Performance Industrial Grade Flow And Level Measuring Instruments. Our Company Boasts A Top-Quality Solvent Turbine Flow meter, Which Features A Flange Type And Is Capable Of Delivering Outstanding Performance Even In Non-Conductive Liquids Such As Kerosene, Petroleum, And Vegetable Oil. This Flow meter Operates By Measuring The Media Through A Rotor That Runs Freely With A Tube, Causing The Rotation Speed To Be Proportional To The Velocity Of The Fluid Media. We Take Pride In Utilizing Only The Finest Quality Materials And Updated Technology In The Processing Of Our Turbine Flow Meters, Which Enables Us To Confidently Guarantee The Superior Performance Of Our Products.
