Pride controls & system are the manufacture, Supplier and Exporters of Stainless Steel Mechanical Multijet Flange end water meter. Stainless Steel Water Meters for indicating flow totalization of water. Stainless Steel gives additional corrosion resistance when totalizing liquids with corrosive or chemical element. We have SS 304, SS 316 material of Construction. Removable mechanism Ensures trouble free maintenance.

Pride controls & system are the manufacture, Supplier and Exporters of Stainless Steel Multijet Tri-clover end water meter. we have SS 304, SS 316 material of construction. Tri-clamp fitting flow meter is mainly with stainless steel wet parts material also tri-clamp process connection for sanitary and hygienic purpose, in- line type flow sensor is widely used in food industry such as food and beverage industries etc. It will be easy to fix and remove in between the pipe line, which facilitate disassembly and cleaning to measure the flow rate.

Pride Controls & Systems are the Manufacture, Supplier & Exporters of SS Mechanical Woltman watermeter. These Stainless Steel Mechanical Woltman watermeters are available in DN 50 to DN 300. The pride has actively engaged in manufacturing the quality products to measure the flow and it has better accuracy which ensures German design that allows high flow rate with low pressure drop. Vacuum sealed register for smooth flow measurement and Removable Mechanism ensures trouble free maintenance. It used in Various Applications such as Raw water, Waste water, Sewage water and Effluent water.

Pride Controls & Systems proud to be introduce SS 316 Mechanical Flowmeter. Pride Controls are the manufacturer, Supplier and Exporters of Stainless Steel Mechanical Water Meter. Pride actively engaged in providing an excellent quality range of SS Mechanical Water Flow Meter. We have all food Grade material of Construction.

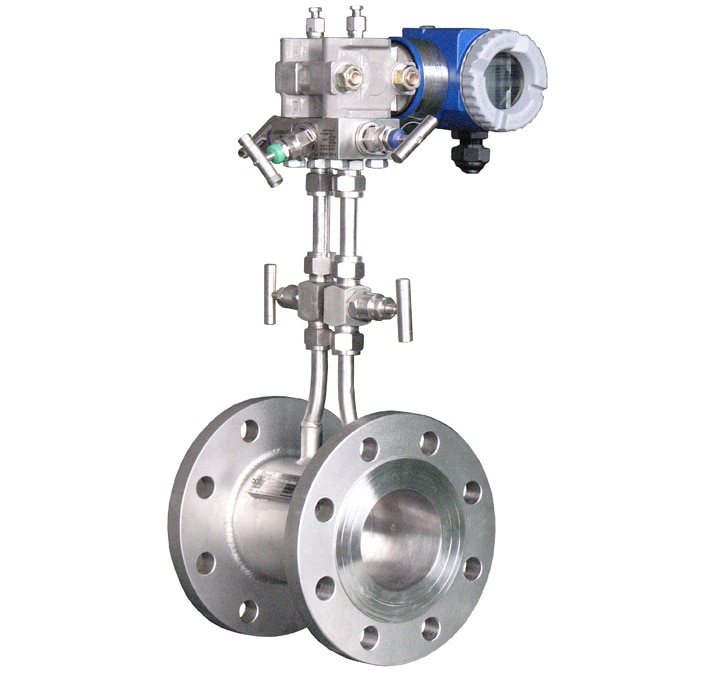

Pride Controls & Systems is pleased to offer the orifice plate flow meter is a crucial differential pressure flow meter used extensively for measuring clean liquid, gas, and steam mass flow. It is universally applicable for all pipe sizes and offers a highly cost-effective solution for assessing fluid flows in larger pipes (exceeding 6" diameter). Predominantly composed of stainless steel, the orifice plate is the most prevalent material employed. When it comes to low flow rate measurement, a d/p cell featuring an integral orifice is unequivocally the optimal choice. It is imperative to note that orifice plate flow meters are exclusively recommended for clean, single-phase fluids. Even minimal build-up can result in substantial measurement inaccuracies or unit blockage. During installation, critical factors, including tap location and condition, pipe state, adequacy of straight pipe runs, gasket interference, pipe, and orifice bore misalignment, and lead line design must be meticulously observed. Moreover, potential adverse circumstances such as the blunting of the sharp edge, corrosion or erosion-induced nicks, plate warpage stemming from water hammer and dirt, and the deposition of grease or secondary phases on the orifice surface necessitate unwavering attention.

Pride Controls are the manufacturer, Supplier and Exporters of Stainless Steel Mechanical Water Meter.This Analog water meter shows the clear reading with optional features of Pulse output/ Reed switch. Sizes available from Multijet DN 15 to DN 50. This Screw type water meter have SS 304, SS 316 material of Construction.

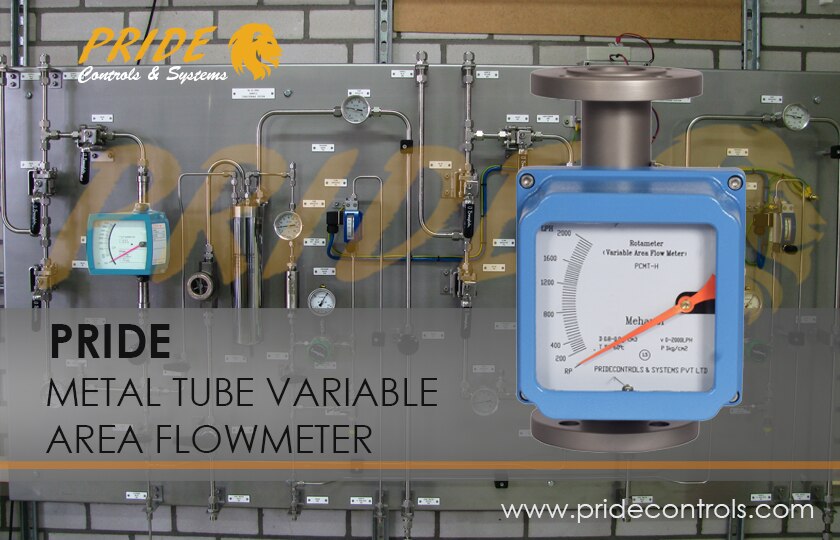

Pride Controls & Systems Pvt Ltd is an ISO 9001 : 2015 Certified Manufacturing company of High Performance Industrial grade flow measuring instruments . The Pride PCMT-H Metal tube variable area flowmeter is to measure the flow rate of liquid, steam, gas and oil with greater flexibility & less pressure drop in various industrial applications. PRINCIPLE OF OPERATION OF VARIABLE AREA FLOW METER This Flowmeter works based on variable area principle. When the fluid flow increases, the float in a metal tube raises and the float’s height is directly proportional to the flow rate of the fluid..The higher the flow rate the higher the float is raised. The float moves in a tapered tube up or down in proportion to the flow rate of the fluid and the annular area between the float and the tube. Advantages of Metal tube Variable Area Flowmeter • Short mounting length and compact construction • Easy method of installation • No straight pipe run required before or after the flowmeter • Metallic tube with a robust construction • Indication by means of magnetic coupling • High performance even at extreme working conditions • High resistance to corrosion • Low pressure drop • Vertical or horizontal connections Features of Metal tube Variable Area Flowmeter • Installation: Vertical as standard and Horizontal Mounting can be done with optional feature • Display: LCD display for flow Tantalizer on request • Flow measurement: Suitable for Liquid, Steam, Gas, Air & Oil • Flow Units: LPH, M3/hr, Kg/hr, Nm3/hr • Line Sizes: 1/4th to 6” • Transmitter Output: 4 – 20 mA Analog output can be given as optional feature • Alarm Output: Relay Output • Pressure Rating: 40 Bar as standard and up to 200 Bar can be given on request • Temperature: 50 Deg C to +200 Deg C as standard and up to 400 Deg C on request • End Connections: Flanged, Threaded, Tri Clamp and others as per request • Body Material: SS304, SS316, SS316L, and other materials as per request • Wetted Parts: PTFE, SS316L, SS316, SS304, and other materials as per request.

Pride Controls is an ISO 9001: 2015 certified manufacturer of High Performance Industrial grade Vortex Flow Meters which is used to measure Conductive and Non- Conductive Liquids, Dry Gas, Wet Gas, Mixture of Gases, Saturated & Superheated Steam. These Vortex flow meters are designed to measure the mass flow & volumetric flow of the above fluid’s in various applications which are not stable in parameters like Conductivity, ph, Viscosity, Density, Specific Gravity, Pressure and temperature. Working Principle of Vortex Flowmeter A Vortex Flowmeter measures the fluid flow when an obstruction placed i a fluid’s stream, the vortices are shed alternately from the placed obstruction. This creates the pattern of flow which is known as Karman street effect discovered by Todor Von Karman. The shedding frequency of the fluid is proportional to the flow velocity. Features • Measures Mass flow, Volumetric Flow, Pressure, & Temperature • Suitable for Dry Gas, Wet Gas & Mixture of Gases • Super Heated& Saturated steam measurement • Measurement of Conductive & Non Conductive Liquids such as Water, Acid & Base • Anti Vibration design& long service life • Digital technology support Industry 4.0 • Pressure rating 16kg/cm2 is standard and up to 100kg/cm2 is optional feature • Temperature rating -40 Deg C to +350 Deg C on request as per the application • Outputs 4-20 mA, Pulse, HART & Modbus RS485 Advantages • Easy installation, Non Moving parts and maintenance free design • Factory calibration & Programming as per the process requirement enables plug & Play Installation • Wetted parts are SS304, SS316 and other materials as per media & applications • High Performance even at extreme industrial conditions • High resistance to corrosion, Pressure & Temperature • Low pressure drop • Maintenance free design About Pride Controls Pride Controls & Systems Pvt Ltd is an ISO 9001 : 2015 certified manufacturing company of industrial flow measuring equipment in India . We at Pride Controls manufactures flow meters such as Electromagnetic flowmeters, Vortex flowmeters, Thermal mass flow meters, Turbine flowmeters, Ultrasonic flowmeters, Variable area flowmeters and water meters.

Pride Controls is the manufacturer, supplier and the exporter of stainless steel 316 and 304 SS water Flow meters from Chennai in India. We serve the nearby locations such as Coimbatore, Madurai, Erode, and other industrial areas in and around Tamilnadu. We also serve PAN india locations like Pune, Delhi, Bangalore, Cochin, Hyderabad, Visakapatnam, Vijayavada.
