PRIDE HET 1000 TURBINE FLOWMETER

The Pride HET-1000 Liquid Turbine Flowmeter is designed to Provide high Performance and good accuracy with Various Sizes and end Connections. For the measurement of flow rate and Volume of Conductive and Non-Conductive Liquids, free flowing liquids and medium Viscous Liquids, the turbine Flowmeters is one of the best Choices. Due to the Optimized Design it has minimized influence of flow profile and low Pressure loss with Long meter life and reliability.

PRIDE HET 950 TURBINE FLOWMETER The Pride HET-950 Liquid Turbine Flowmeter is designed to Provide high Performance and good accuracy with Various Sizes and end Connections. For the measurement of flow rate and Volume of Conductive and Non-Conductive Liquids, free flowing liquids and medium Viscous Liquids, the turbine Flowmeters is one of the best Choices. Due to the Optimized Design it has minimized influence of flow profile and low Pressure loss with Long meter life and reliability.

Pride Controls & Systems Pvt Ltd are the Manufacturers, Suppliers and Exporters of Sanitary Turbine Flow meter is designed to provide high performance and good accuracy with various sizes and end connection. Optimised design to reduce the influence of flow profile. These clamp on type of connection is used for hygienic and cleaning process such as Food oil, Vinegar, Free Flowing Liquids, Diary & milk products etc.

Pride Controls and Systems Pvt. Ltd is an ISO 9001 : 2015 Certified Manufacturing Company. The Pride CI Mechanical woltman type Hot Watermeters are used in various applications such as Effluent water, Sewage water, Raw water, Waste water. Line Sizes are available in DN 50 to DN 600 and the temperature will withstand upto 130 Deg C. The Pride Hot Watermeters have optional features of Pulse Output/ Reed Switch with Better Accuracy of ± 2% at transitional flow rate.

We are the manufacturer, Supplier and the Exporters of PRIDE HET-1000 Series Sanitary Turbine Flowmeter is designed to provide high Performance and good accuracy with Various Sizes and End Connections. This Tri- Clover standard is easy to fix and remove for the cleaning purpose and maintenance in result of lower risk of product contamination. It used to measure the flow rate and volume of Conductive and Non-Conductive Liquids, Mineral oil, Chemicals, Glycol, Vinegar, Wine, Solvents etc.

We manufacture supplier of multijet water meter in Bangalore, Karnataka, India. We Pride Controls is a manufacturing company certified ISO 9001 : 2015 for High Performance Industrial grade flow meters. The Pride Class B Multijet Mechanical CI analog water meters are conforms to ISO - 4064 standard and used in various applications such as Treated Effluent water and sewage water, raw water, waste water. We also supply these water meters to throughout India and also we do exports to various countries. PRIDE - MECHANICAL MULTIJET WATERMETERS • Conforms to international standards ISO 4064 • Available MOC – CAST IRON , BRASS, • Sizes available from DN15 to DN40 • German design ensures better accuracy • allows high flow rate with low pressure drop • Vacuum sealed register for smooth flow measurement • Anti-Frost dial display for clear readings • Removable Mechanism ensures trouble free maintenance FEATURES Magnetic driven water meter Sizes available from DN15 to DN40 Upto 50 Deg C for cold water meter and upto 130 Deg C for hot water meter Optional features of Pulse output / Reed switch Available in Screwed, Flanged and Tri-clover end connections Better accuracy of + 2% at transitional flow rate

PRIDE Liquid Turbine Flow Meter is designed to give good accuracy and high performance. The Turbine flowmeter is mainly used in the measurement of flow rate and volume of non-conductive and conductive liquids and medium viscous liquids. The optimized design helps to minimize the influence of flow profile and low pressure loss. This Turbine Flowmeter are manufactured in various sizes, connections, communication port, construction, output, etc. The Pride HET-1000 Liquid Turbine Flow Meter operates and measures the media through a Rotor which runs freely within a tube. When the fluid media flows through the cylindrical tube that applies a force on the rotor which causes the rotation and that rotation speed is proportional to the velocity of the fluid media. Every time the rotor makes the full complete rotation, a pulse generated in the transmitter which is corresponding to the volume of fluid media passing through the cylindrical tube of the turbine flow meter. Most used applications are Acids, Solvents, Diesel, Kerosene, Pure Water, De-Mineralized Water, Syrups, Mineral Oil, Food Oil, Spirits, Chemicals, Petrol, Ammonia Liquid, Wine, Vinegar, Alcohol, Free Flowing Liquids, Low & Medium Viscous Liquids, Conductive & Non-Conductive Liquids. The Pride HET-1000 Liquid Turbine flow meter can be installed both Horizontal and Vertical positions. We recommend only for Horizontal installation for larger sizes turbine flowmeter from DN100. In accordance to API 2534 standards, the straight pipe section of 10 D before the turbine flow meter and 5 D after is required. Also we recommend an air separator and strainer before the turbine flow meter to achieve it best performance. The standard calibration is done based on water with a density of 1kg/Liter and viscosity of 1mPass. The liquid turbine flowmeter suppliers in Bangalore

Pride Controls & Systems Pvt Ltd is an ISO 9001 : 2015 Certified Manufacturing company of High Performance Industrial grade flow measuring instruments. The Pride Class B Mechanical CI analog water meters are conforms to ISO - 4064 standard and used in various applications such as Effluent water, sewage water, Raw water, Waste water. We supply these water meters to PAN India and also exports to various countries. PRIDE - MECHANICAL WATERMETERS • Conforms to international standards ISO 4064 • Available MOC - SS304, SS316 • Sizes available from DN15 to DN600 • German design ensures better accuracy • allows high flow rate with low pressure drop • Vacuum sealed register for smooth flow measurement • Anti-Frost dial display for clear readings • Removable Mechanism ensures trouble free • maintenance FEATURES Magnetic driven water meter Sizes available from DN15 to DN50 Upto 50 Deg C for cold water meter and upto 130 Deg C for hot water meter Optional features of Pulse output / Reed switch Available in Screwed, Flanged and Tri-clover end connections Better accuracy of + 2% at transitional flow rate

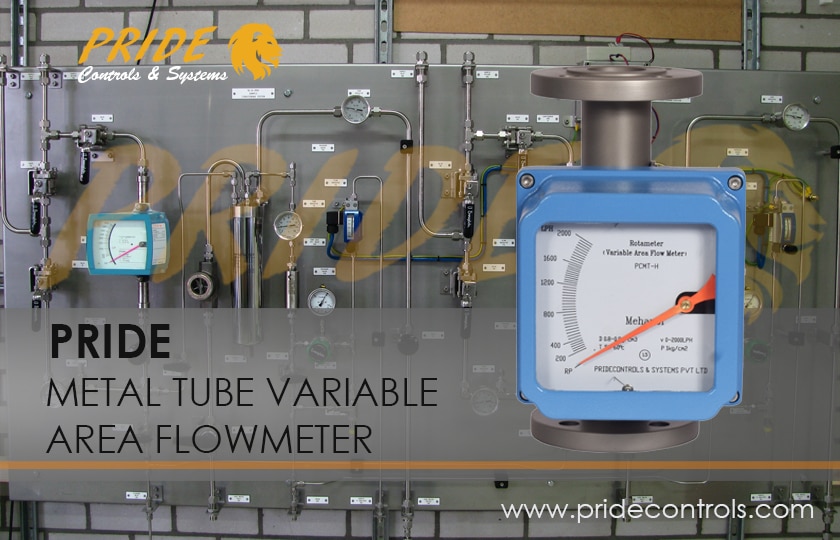

Pride Controls & Systems Pvt Ltd is an ISO 9001 : 2015 Certified Manufacturing company of High Performance Industrial grade flow measuring instruments . The Pride PCMT-H Metal tube variable area flowmeter is to measure the flow rate of liquid, steam, gas and oil with greater flexibility & less pressure drop in various industrial applications. PRINCIPLE OF OPERATION OF VARIABLE AREA FLOW METER This Flowmeter works based on variable area principle. When the fluid flow increases, the float in a metal tube raises and the float’s height is directly proportional to the flow rate of the fluid..The higher the flow rate the higher the float is raised. The float moves in a tapered tube up or down in proportion to the flow rate of the fluid and the annular area between the float and the tube. Advantages of Metal tube Variable Area Flowmeter • Short mounting length and compact construction • Easy method of installation • No straight pipe run required before or after the flowmeter • Metallic tube with a robust construction • Indication by means of magnetic coupling • High performance even at extreme working conditions • High resistance to corrosion • Low pressure drop • Vertical or horizontal connections Features of Metal tube Variable Area Flowmeter • Installation: Vertical as standard and Horizontal Mounting can be done with optional feature • Display: LCD display for flow Tantalizer on request • Flow measurement: Suitable for Liquid, Steam, Gas, Air & Oil • Flow Units: LPH, M3/hr, Kg/hr, Nm3/hr • Line Sizes: 1/4th to 6” • Transmitter Output: 4 – 20 mA Analog output can be given as optional feature • Alarm Output: Relay Output • Pressure Rating: 40 Bar as standard and up to 200 Bar can be given on request • Temperature: 50 Deg C to +200 Deg C as standard and up to 400 Deg C on request • End Connections: Flanged, Threaded, Tri Clamp and others as per request • Body Material: SS304, SS316, SS316L, and other materials as per request • Wetted Parts: PTFE, SS316L, SS316, SS304, and other materials as per request.
