electromagnetic flow meter e model

Pride Controls & Systems is a leading company of manufacturing the Electromagnetic Flow meters can be used at construction sites of the flow measurement of slurries. They are useful in measuring displacement of explosive liquids, heavy particles and slurries. This electromagnetic flow meter consist two numbers of inductive coils, electrodes and transmitter unit. The measurement is done when the conductive fluid passes through the pair of coils which the electromagnetic field created, and the voltage induced due to flux which is sensed by the electrodes and transmitted to the electronic circuits.

A COMMITMENT TO BETTER PERFORMANCE Pride Controls & Systems PVT LTD is an ISO 9001 : 2015 Certified Manufacturing company of High Performance Industrial grade flow measuring instruments. The Pri - Mag series of electro magnetic flow meters are manufactured in robust design to meet all kinds of industrial challenging atmosphere and performs with good accuracy and reliability. WORKING PRINCIPLE OF ELECTROMAGNETIC FLOWMETER Faraday’s law of electromagnetic induction formula is the working principle of this flow measuring equipment. This electromagnetic flow meter consist two numbers of inductive coils, electrodes and transmitter unit. The measurement is done when the conductive fluid passes through the pair of coils which the electromagnetic field created, and the voltage induced due to flux which is sensed by the electrodes and transmitted to the electronic circuits.

The Electromagnetic flowmeters are used in bore well to measure the water withdrawals, usage and consumption. These electromagnetic flow meters are manufactured to face all kinds of site challenges and to perform with good accuracy and reliability. The bore well raw water contains good electrical conductivity and the electromagnetic flowmeter works on Faraday’s law of electromagnetic induction formula to measure the water flow.

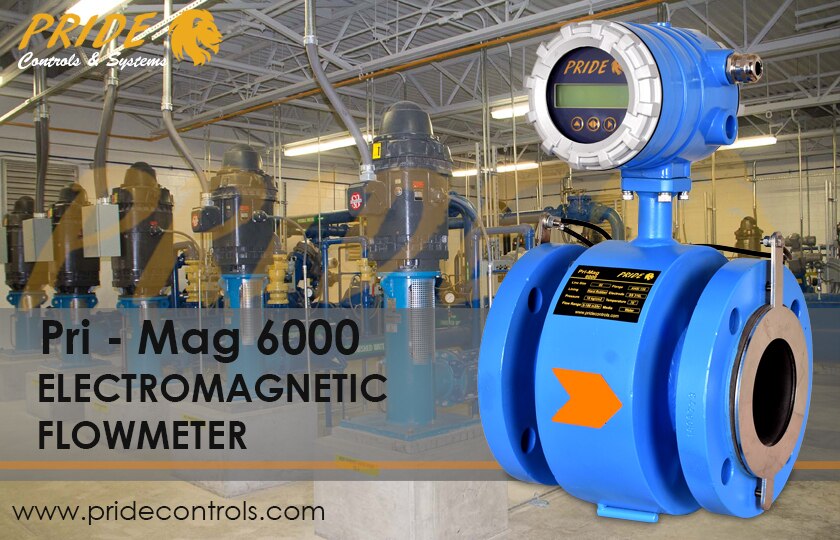

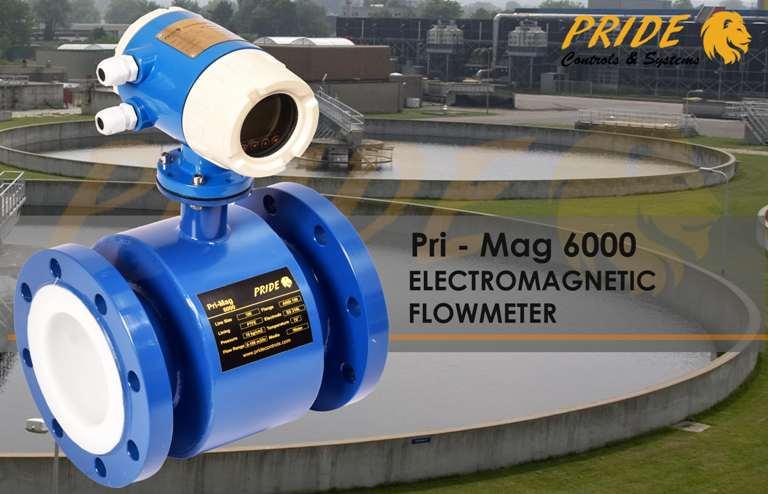

A COMMITMENT TO BETTER PERFORMANCE Pride Controls & Systems PVT LTD is an ISO 9001 : 2015 Certified Manufacturing company of High Performance Industrial grade flow measuring instruments. The Pri - Mag series of electro magnetic flow meters are manufactured in robust design to meet all kinds of industrial challenging atmosphere and performs with good accuracy and reliability. WORKING PRINCIPLE OF ELECTROMAGNETIC FLOWMETER Faraday’s law of electromagnetic induction formula is the working principle of this flow measuring equipment. This electromagnetic flow meter consist two numbers of inductive coils, electrodes and transmitter unit. The measurement is done when the conductive fluid passes through the pair of coils which the electromagnetic field created, and the voltage induced due to flux which is sensed by the electrodes and transmitted to the electronic circuits. ADVANTAGES OF PRI - MAG 6000 ELECTROMAGNETIC FLOWMETER *Accuracy will not affected due to change in viscosity, density, ph, temperature & pressure. *Minimum line size 10mm to maximum 3000mm. *No moving parts and it’s a full bore flow meter. *No wear and tear parts so that increased service life. *Fast response to intermediate flow changes. *Suitable for liquids with sludge, heavy particles and slurries. *Equipped with latest communication protocols to support industry 4.0 / Internet Of Things (IOT). *Suitable for highly corrosive and inflammable liquids, chemicals acids and bases with certain level of conductivity. *PRI - MAG comes with both Metal and Non-Metal body Various power options like AC, DC, Battery Powered and Solar Powered. *Communication protocols includes HART, GSM, GPRS, RS 485, RS 232 MODBUS RTU *Electrodes in Hastelloy C, Titanium, Tantalum, Platinum can be given as per the fluids parameters.

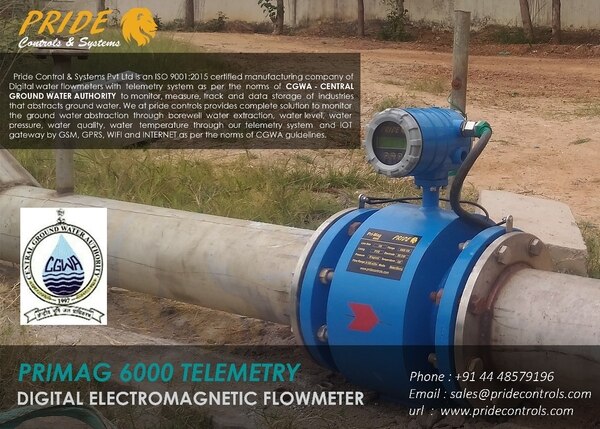

Central Ground Water Authority (CGWA) has issued public notice to all the project proponents/users drawing ground water and seeking/having NOC shall have to mandatorily install tamper-proof digital water flowmeters with telemetry on all the ground water abstraction structures within their premises.
