A COMMITMENT TO BETTER PERFORMANCE
Pride Controls & Systems PVT LTD is an ISO 9001 : 2015 Certified Manufacturing company of High Performance Industrial grade flow measuring instruments. The Pri - Mag series of electro magnetic flow meters are manufactured in robust design to meet all kinds of industrial challenging atmosphere and performs with good accuracy and reliability.
WORKING PRINCIPLE OF ELECTROMAGNETIC FLOWMETER
Faraday’s law of electromagnetic induction formula is the working principle of this flow measuring equipment. This electromagnetic flow meter consist two numbers of inductive coils, electrodes and transmitter unit. The measurement is done when the conductive fluid passes through the pair of coils which the electromagnetic field created, and the voltage induced due to flux which is sensed by the electrodes and transmitted to the electronic circuits.

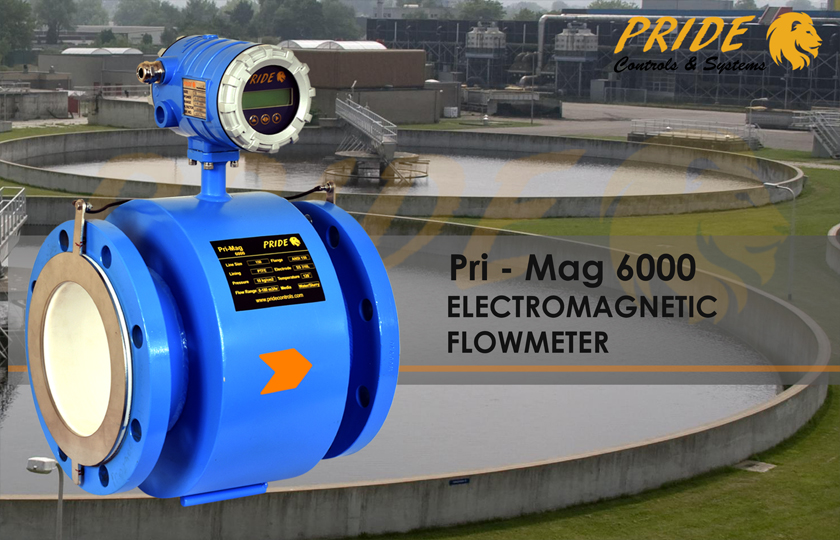

ADVANTAGES OF PRI - MAG 6000 ELECTROMAGNETIC FLOWMETER
*Accuracy will not affected due to change in viscosity, density, ph, temperature & pressure.
*Minimum line size 10mm to maximum 3000mm.
*No moving parts and it’s a full bore flow meter.
*No wear and tear parts so that increased service life.
*Fast response to intermediate flow changes.
*Suitable for liquids with sludge, heavy particles and slurries.
*Equipped with latest communication protocols to support industry 4.0 / Internet Of Things (IOT).
*Suitable for highly corrosive and inflammable liquids, chemicals acids and bases with certain level of conductivity.
*PRI - MAG comes with both Metal and Non-Metal body Various power options like AC, DC, Battery Powered and Solar Powered.
*Communication protocols includes HART, GSM, GPRS, RS 485, RS 232 MODBUS RTU
*Electrodes in Hastelloy C, Titanium, Tantalum, Platinum can be given as per the fluids parameters.
